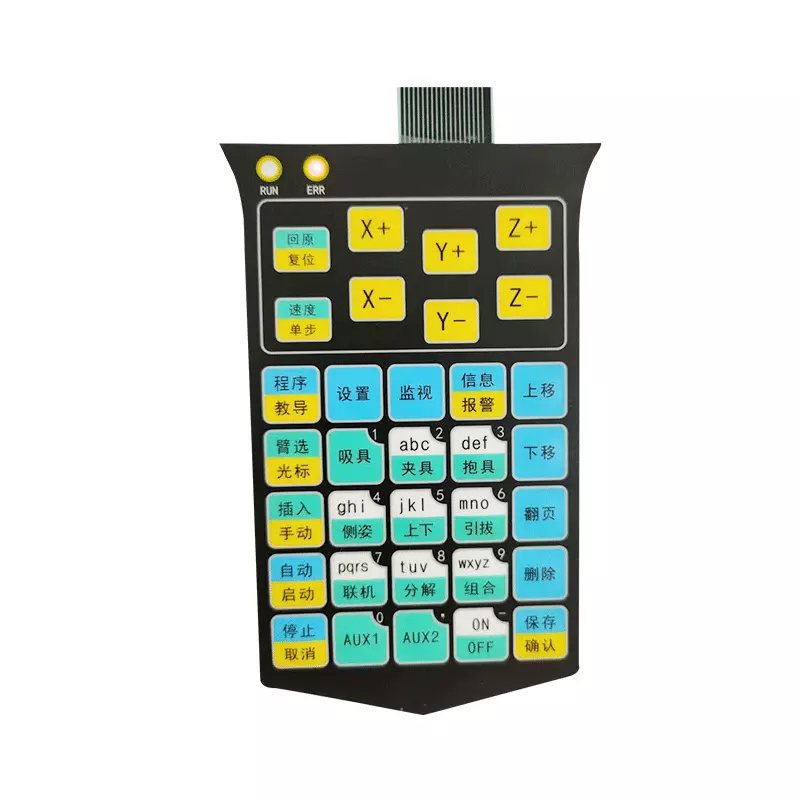

LED membrane switch

LED membrane switch

MOQ: 100 Pieces
Delivery time: 15 Day
Inquiry Contact Us

Product Details

Product parameters



Working voltage :≤50VDC Working current :≤100MA
Contact resistance :0.5-10Q Working current :≤100MA
Base material pressure resistance: 20KDVC Rebound time :6MS
Loop resistance :500Ω, 1500Ω, 350Ω in three grades, or customized according to user requirements
Insulating ink voltage resistance: 100VDC Reliable service life :>1 million times
Closed displacement: 0.1-0.MM(non-tactile type)0.4-1.0MM
Force :15-750G Silver paste migration: After 90% for 56 hours at 55 ° C
Pin pitch standards: 2.54, 2.50, 1.27, 1.25MM
Operating temperature: -20 °C to +70°C
Color and style: All can be customized according to the customer's requirements
Scope of application: Measuring instruments, analytical instruments, navigation instruments, industrial instruments, CNC machine tools, detectors, electronic weighing instruments, computer operation keyboards, printing electronic equipment, etc
